We are Authorized Dealer, Distributor, Supplier, Exporter of Temposonics Industrial Position Sensors, Magnetostrictive Linear Position Sensors
The absolute, linear position sensors provided by Temposonics rely on the company’s proprietary magnetostrictive technology, which can determine position with a high level of precision and robustness.

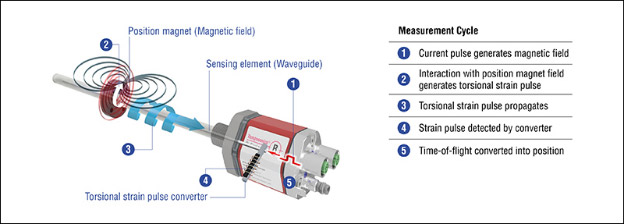

Each Temposonics position sensor consists of a ferromagnetic waveguide, a position magnet, a strain pulse converter and supporting electronics. The magnet, connected to the object in motion in the application, generates a magnetic field at its location on the waveguide. A short current pulse is applied to the waveguide. This creates a momentary radial magnetic field and torsional strain on the waveguide. The momentary interaction of the magnetic fields releases a torsional strain pulse that propagates the length of the waveguide. When the ultrasonic wave reaches the end of the waveguide it is converted into an electrical signal. Since the speed of the ultrasonic wave in the waveguide is precisely known, the time required to receive the return signal can be converted into a linear position measurement with both high accuracy and repeatability.
Industrial Position Sensors
Temposonics® magnetostrictive linear position sensors feature all relevant industry outputs to support a large variety of industrial applications. This, together with the reliability of the position and velocity measurement, guarantees superior control of the application.
• Developed for linear position measurement in industrial applications
• Stroke lengths from 25 mm to 20 m
• Various sensor models, designs, outputs, approvals and performance classes are available You get the right linear position sensor for your industrial application. We have multiple series In Linear R-V, E, T, G, L Series
• Stroke lengths from 25 mm to 20 m
• Various sensor models, designs, outputs, approvals and performance classes are available You get the right linear position sensor for your industrial application. We have multiple series In Linear R-V, E, T, G, L Series

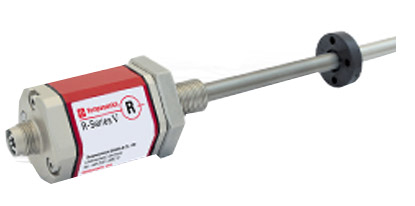

R-Series V RH5
The new generation of high performance rod-style sensors for demanding in-cylinder applications
• Backward compatible
• Increased operating temperature up to +85 °C (+185 °F)
• Increased shock & vibration resistance
• Improved performance with high accuracy & reliability
• Multi-position measurement with up to 30 magnets
• Outputs: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT®
• Backward compatible
• Increased operating temperature up to +85 °C (+185 °F)
• Increased shock & vibration resistance
• Improved performance with high accuracy & reliability
• Multi-position measurement with up to 30 magnets
• Outputs: Analog, SSI, PROFINET, EtherNet/IP™, POWERLINK, EtherCAT®
E-Series EH
Compact rod design for in-cylinder applications
• Available in stainless steel 1.4404 (AISI 316L)
• Multi-position measurement up to 8 magnets
• Outputs: Analog, CANbus, IO-Link, SSI, Start/Stop
• Available in stainless steel 1.4404 (AISI 316L)
• Multi-position measurement up to 8 magnets
• Outputs: Analog, CANbus, IO-Link, SSI, Start/Stop

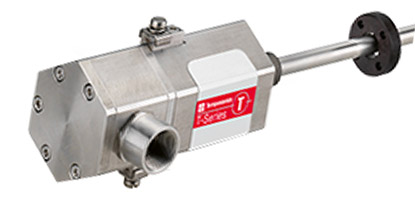

T-Series TH
Extremely robust position sensor designed & certified for Ex-applications
• Available in stainless steel 1.4404 (AISI 316L)
• Ingress protection IP66, IP67, IP68, IP69K, NEMA 4X
• Approval options: ATEX, IECEx, CEC, NEC, Japanese approval, ClassNK, KCs, CCC, PESO
• Flame- & explosionproof
• Multi-position measurement with up to 4 magnets
• Outputs: Analog, CANbus, SSI
• Available in stainless steel 1.4404 (AISI 316L)
• Ingress protection IP66, IP67, IP68, IP69K, NEMA 4X
• Approval options: ATEX, IECEx, CEC, NEC, Japanese approval, ClassNK, KCs, CCC, PESO
• Flame- & explosionproof
• Multi-position measurement with up to 4 magnets
• Outputs: Analog, CANbus, SSI
