Inductive / Proxy Sensors


Inductive / Proxy Sensors

Sensor M8
Sensor M12
Sensor M18
Sensor M30

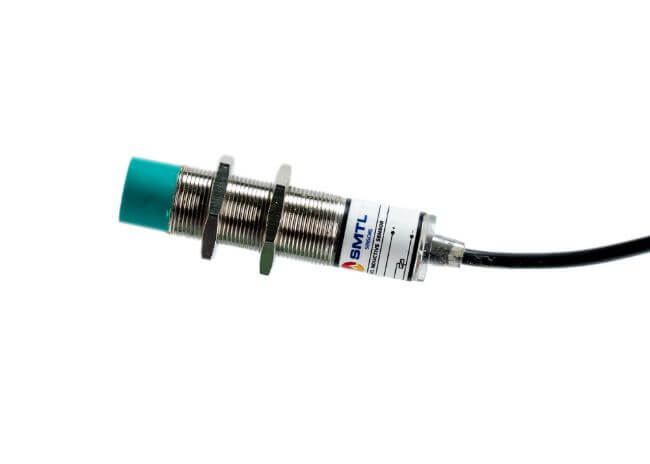

An inductive / Proxy Sensor is a device that uses the principle of electromagnetic induction to detect or measure objects. We have available inductive / Proxy Sensor in M6 to M30 with 1Year warranty.


Inductive Sensor

  • Size : M8/M12/M18/M30
  • Sensing Distance : 2mm ...... 20mm
  • Type : Flush / non-Flush
  • Output Circuit : PNP & NPN (NO/NC)
  • Operating Voltage : 12 - 30VDC
  • Connection Type : Cable / Connector

Sensitivity when different objects are present, Sn = Operating distance

  • Fe37 (Iron) - 1 x Sn
  • Stainless Steel - 0.9 x Sn
  • Brass bronze - 0.5 x Sn
  • Copper - 0.4 x Sn
  • Aluminum - 0.4 x Sn
